Professional Garage Door Hinge Replacement: What to Expect During the Service

Key takeaways

• A professional garage door hinge replacement follows a set order: inspection, itemized quote, securing the door, removing and installing hinges, tightening, an alignment check, test cycles, lubrication and a walkthrough.
• Technicians replace hinges one or two at a time so the door panels stay stable and do not shift or drop.
• Each hinge goes back in its numbered position (#1 at the bottom, then #2, #3 and so on), because hinge numbers differ by panel level.
• DASMA’s opener safety guide says a properly balanced door stays partly open about 3-4 feet above the floor, and an opener should reverse when the closing door meets a 2×4 laid flat on the floor.
• Fixing a cracked panel or worn rollers during the same visit usually costs less than booking a second service call.

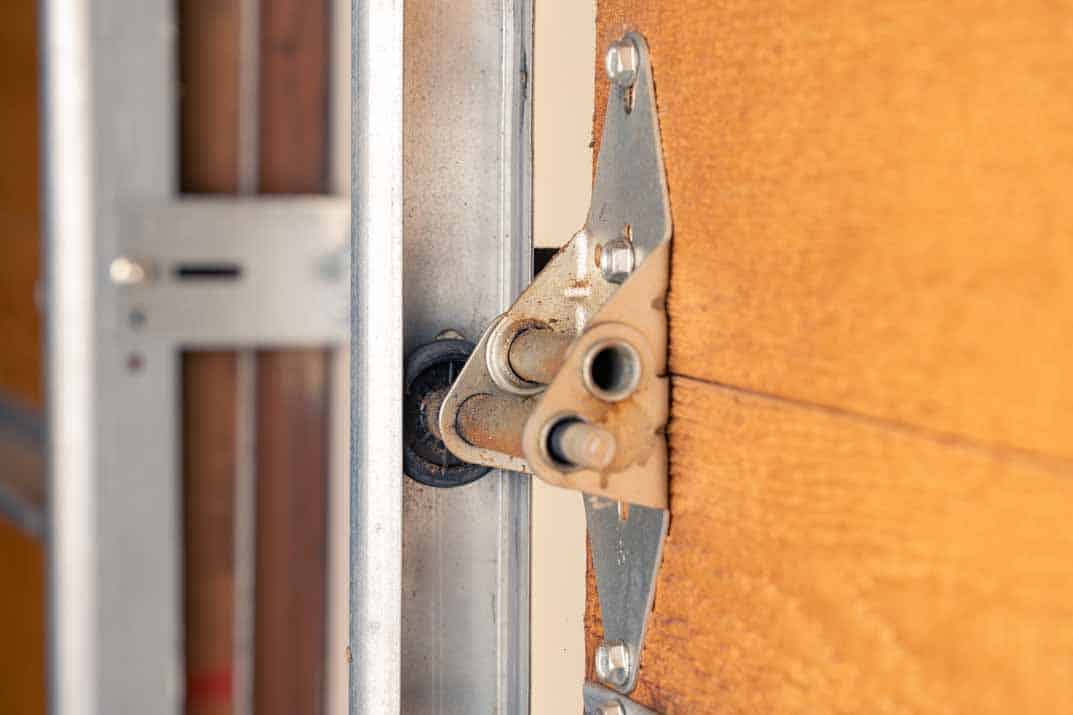

A professional garage door hinge replacement starts with an inspection of the whole door and ends with the technician testing the door and walking you through what was done. You usually need one when rust is severe, several hinges fail at once, or the door sags. Garage door hinges are the steel brackets that join the door panels and let them fold around the curve of the track, and replacing them properly also means checking the springs, rollers and opener that share the load. Here is what to expect when RJ Garage Door Service replaces hinges in Raleigh, Durham or Cary.

What happens during the initial consultation and assessment?

The initial consultation and assessment is a full inspection of the door, hinges, springs, rollers, tracks and opener included. An RJ Garage Door Service technician checks three things:

• Each hinge is examined for damage, rust or misalignment, along with the condition of the panels.
• The springs and overall alignment are tested, because an unbalanced door puts extra stress on the hinges. DASMA’s Automatic Garage Door Opener Safety and Maintenance Guide describes a balanced door as one that stays partly open about 3-4 feet above the floor when you let go of it.
• Rollers, tracks and opener settings are reviewed to confirm the problem really is the hinges and not another component.

From this the technician works out how many hinges need replacing and whether other repairs, such as realigning a track or upgrading rollers, would help.

What should a detailed quote and recommendations include?

A detailed quote should itemize the hinges, the labor and any optional upgrades, so you can see what each part of the job costs.

• Hinge costs list the type, quantity and any special finishes or custom hardware.
• Labor estimates cover removal, installation, alignment and testing time.
• Optional upgrades, such as heavier-duty hinges, new rollers or extra corrosion protection, appear separately when they apply.

Ask why each item is recommended. A reputable company will explain it, and you can decline an upgrade you do not need.

How does the technician prepare and keep the job safe?

The technician prepares by setting up tools, securing the door and shutting off the opener before any hinge comes off. On the scheduled day, you can expect them to:

• Set up ladders, wrenches, a cordless drill and safety glasses in a clear workspace.
• Prop or clamp the door panels so nothing moves once the hinges are removed.
• Switch off or unplug the garage door opener so it cannot start while the work is under way.

These steps protect the technician and your car.

How are the old hinges removed?

The old hinges are removed one or two at a time, with the door secured, so the panels stay stable and do not shift or drop.

• Wrenches or a power drill take out the bolts or screws holding each hinge to the panels.
• With the hinge off, any stripped or cracked screw holes in the panel become visible, and those may need extra repair.
• The old hardware usually leaves with the technician for recycling or disposal.

How are the new hinges installed?

The new hinges are installed in exactly the spots the old ones held, with the bolt holes lined up and each hinge in its numbered position.

• Each hinge is lined up with the existing panel holes so the door stays aligned.
• The fasteners have to be rated for the door’s weight, and a heavy door may need heavier-duty screws or bolts.
• Sectional garage doors use numbered hinges (#1, #2, #3 and so on, sometimes written H1, H2) at different panel levels, with #1 at the bottom, and the technician puts each number back where it belongs.

Precision counts here. Even a small misalignment can make the door squeak or bind.

How are the new hinges tightened and secured?

The new hinges are tightened to the recommended torque, firm enough to hold but not so tight that the bolts strip the panel.

• The technician tightens each bolt carefully to that torque.
• Lock washers or thread locker go on where vibration could loosen the bolts.

The technician will usually flex each panel by hand to check that the hinge pivots smoothly without friction.

What does the system-wide alignment check cover?

The system-wide alignment check covers the panel seams, the rollers and the spring balance, so the whole door works together after the hinge work.

• Panel seams should line up flush with minimal gaps.
• Rollers should sit correctly in the tracks without extra stress.
• If the new hinges changed how the door’s weight is distributed, the springs may need a minor adjustment.

How is the door tested after hinge replacement?

The door is tested by opening and closing it several times, first by hand and then with the opener.

• The technician may disconnect the opener and move the door manually to feel for resistance or noise.
• With the opener reconnected, a few full cycles confirm the door runs smoothly and stays aligned.
• Squeaks, rattles or scraping point to misalignment or friction.

Any small adjustments, such as loosening or repositioning a hinge, happen now. A careful technician will also run the opener’s reversal test; DASMA’s guide describes laying a 2×4 board flat in the door’s path and confirming the door stops and reverses when it touches it.

Do new hinges need lubrication and final touches?

New hinges usually move smoothly out of the box, but a small amount of lubricant still helps them wear more slowly.

• A little silicone or lithium-based garage door grease on the hinge pivot points reduces wear.
• The technician may also lubricate the rollers and springs if they need it.

Last, the technician wipes off excess grease and metal shavings.

What should the maintenance walkthrough cover?

The maintenance walkthrough should cover what was done, how often to maintain the door and what the warranty includes.

• The technician explains which hinges were installed and why.
• You get a recommended schedule for lubrication and inspection. DASMA recommends monthly safety checks plus an annual visit from a trained door systems technician.
• The warranty terms for parts and labor are explained so you know what is covered if a problem comes up.

Ask anything, from handling a minor squeak yourself to future upgrades.

What other repairs or upgrades might hinge replacement reveal?

Hinge replacement can reveal problems that were not visible before, such as a cracked panel or badly worn rollers, and the technician will usually suggest fixing those too.

Handling those repairs during the same visit often saves time and money compared with scheduling another call. If the extra problem is minor and your budget is tight, though, it is reasonable to ask the technician whether it can safely wait.

Need garage door hinges replaced in Raleigh or the Triangle?

When the technician finishes, your door should move smoothly, without jamming panels or squeaks. RJ Garage Door Service has replaced garage door hinges across Raleigh, Durham, Cary and Fayetteville since 2013, with free estimates and same-day service. Call (919) 438-7447 to book a visit.
